Console

The embedded console allows you to quickly configure and test data sources.

Add a new JavaScript Module

By default, the engine uses the official repository (opens in a new tab) to get JavaScript module bundles.

Modules published in the offical repository are open source and can be found at Kubling GitHub org (opens in a new tab) (PRs are welcome!)

Configuration

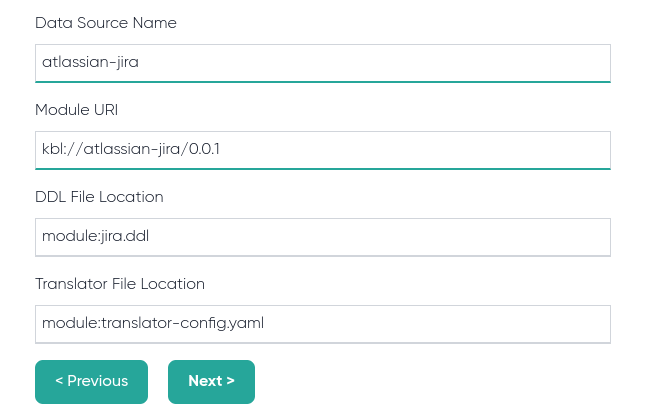

After selecting the Module and version, you will be able to specify some basic configuration, as follows:

Data Source Name

The name of the Schema in the DB.

Module URI

The URI used by the engine to resolve the module. The URI scheme kbl resolves to the official module repository.

DDL file location

Indicates from where to load the DDL. module indicates to the engine that the file URI must be resolved inside the module zip file.

Translator file location

Indicates from where to load the translator configuration file, using same mechanism as in DDL file.

Variables

Each module lists required variables, which must be introduced in this step.

Add a new Kubernetes Cluster

To add a new Kubernetes Cluster as Data Source, you need to obtain its configuration file.
Default locations are: Linux & Mac ~/.kube/config, Windows %USERPROFILE%\.kube\config

There is a default DDL proposed by the engine that you can adapt to your needs. Be sure you understand how it works before changing it since DDL files are loaded during engine bootstrap and it fails if an error is enconutered in any of them.

Deploy

Once finished adding Data Sources, the new descriptor configuration is saved in the engine but not yet loaded. Click on Deploy button to finish the process.

Verify

In the sidebar, click on Engine Metadata to verify whether new Data Sources were successfuly added.
